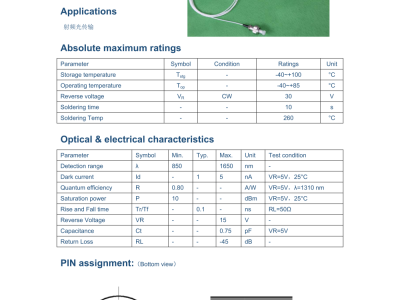

Absolute maximum ratings
Parameter | Symbol | Condition | Ratings | Unit |
Storage temperature | Tstg | - | -40~+100 | °C |
Operating temperature | Top | - | -40~+85 | °C |
Reverse voltage | VR | CW | 30 | V |
Soldering time | - | - | 10 | s |
Soldering Temp | - | - | 260 | °C |
Optical & electrical characteristics
Parameter | Symbol | Min. | Typ. | Max. | Unit | Test condition |
Detection range | λ | 850 | 1650 | nm | - | |
Dark current | Id | - | 1 | 5 | nA | VR=5V，25°C |
Quantum efficiency | R | 0.80 | - | - | A/W | VR=5V，λ=1310 nm |
Saturation power | P | 10 | - | - | dBm | VR=5V，25°C |
Rise and Fall time | Tr/Tf | - | 0.1 | - | ns | RL=50Ω |
Reverse Voltage | VR | - | - | 15 | V | - |
Capacitance | Ct | - | - | 0.75 | pF | VR=5V |
Return Loss | RL | - | - | -45 | dB | - |
